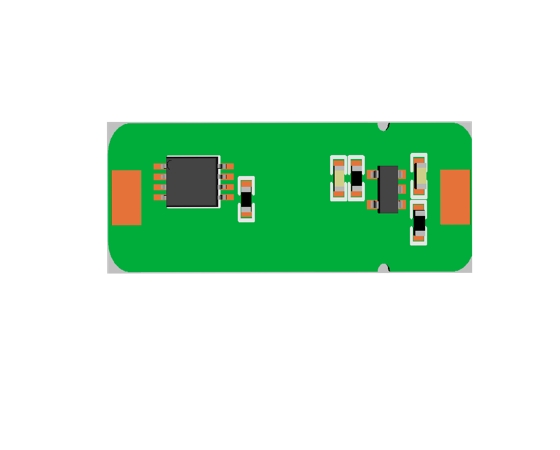

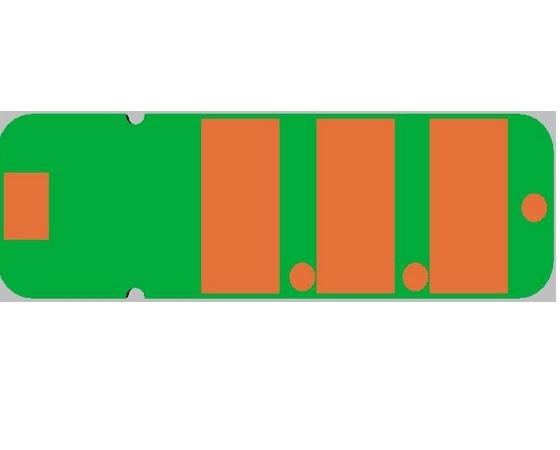

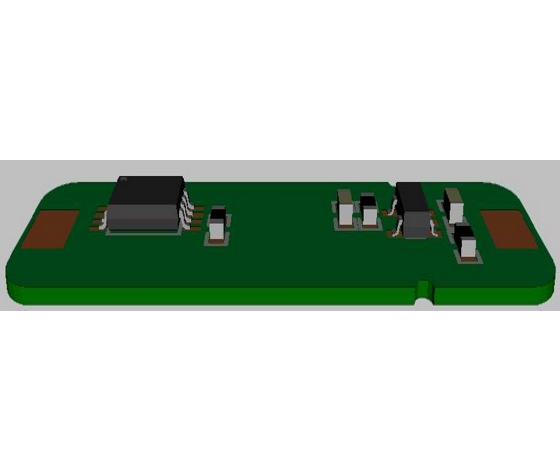

1S PCM


  • 1S PCM

Voltage Between terminals of

B+ and B-

12V

Over-charge detection voltage

4.280 ± 0.025V

Over-discharge detection voltage

2.300 ± 0.058V

Supply current (Normal mode)

8.0 uA (MAX)

Supply current (Sleep mode)

2.0 uA (MAX)

Over-current protection

Discharge

2.5~4.8 A (@Vgs=4.0V)

Charge 1.5~4.5A

(@Vgs=4.0V)

Internal impedance (B-~P-)

60m ohm

(max, @Vgs=4.0V)

Rating current

2.5A
